PSP-MIDI - PSP 1000/2000/3000 USB MIDI Adapter for CFW PSP's
PSP-MIDI is a MIDI adapter for the Sony PSP. The PSP's USB port can only act as a device, so no computer or interface can talk MIDI to it directly. This adapter is the missing USB host: connect it to the PSP, run a synthesizer app, and the PSP is a sound module for a DAW or for hardware MIDI gear.
Adapter must be powered through it's USB-C port, can use your computer, a wall wart or a battery bank. PC USB may introduce noise so TRS MIDI is preferred while powered off a battery bank for clean results.
Features:
- USB-C to the computer: class compliant USB MIDI device, no drivers, appears as PSP-MIDI Adapter in any DAW
- USB-A host port for the PSP, using the PSP's own USB cable
- TRS MIDI in and out (3.5 mm, type A), opto-isolated input, MIDI 1.0

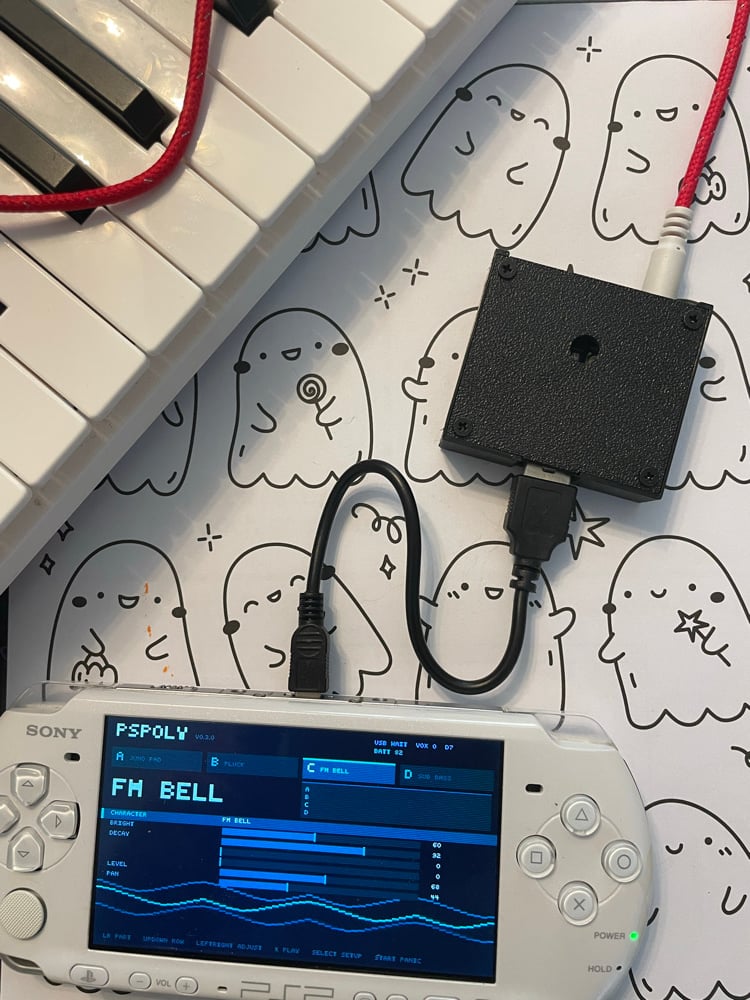

- Works standalone: a keyboard on TRS IN plays the PSP with no computer connected
- Three way routing: TRS IN reaches both the PSP and the DAW, TRS OUT carries DAW and PSP output for chaining hardware
- Notes from the PSP's buttons play back into the DAW
- 3 to 5 ms typical round trip latency
- Firmware pre-installed, recovers on its own from cable replugs and connection faults
Requirements: PSP 1000, 2000 or 3000 with custom firmware and a synthesizer app. The PSP Go has no compatible USB port and is not supported. Powered by the computer's USB port or any USB power supply.
Software: PSPOLY, a 10 voice 4 part multitimbral synthesizer, is the $1 instrument for the adapter.

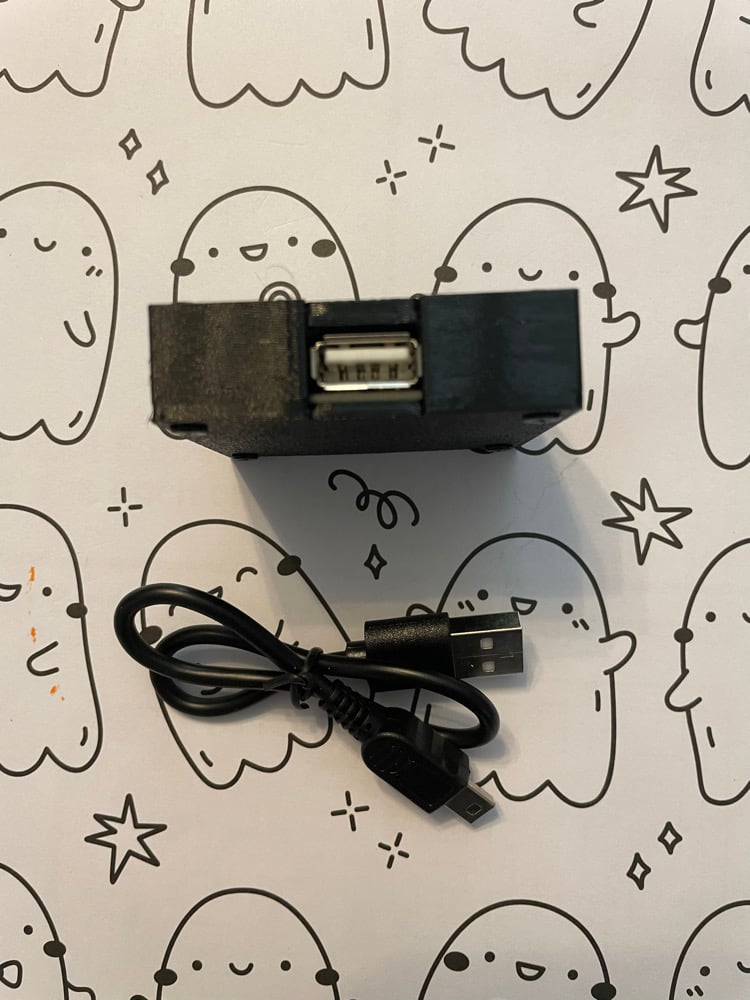

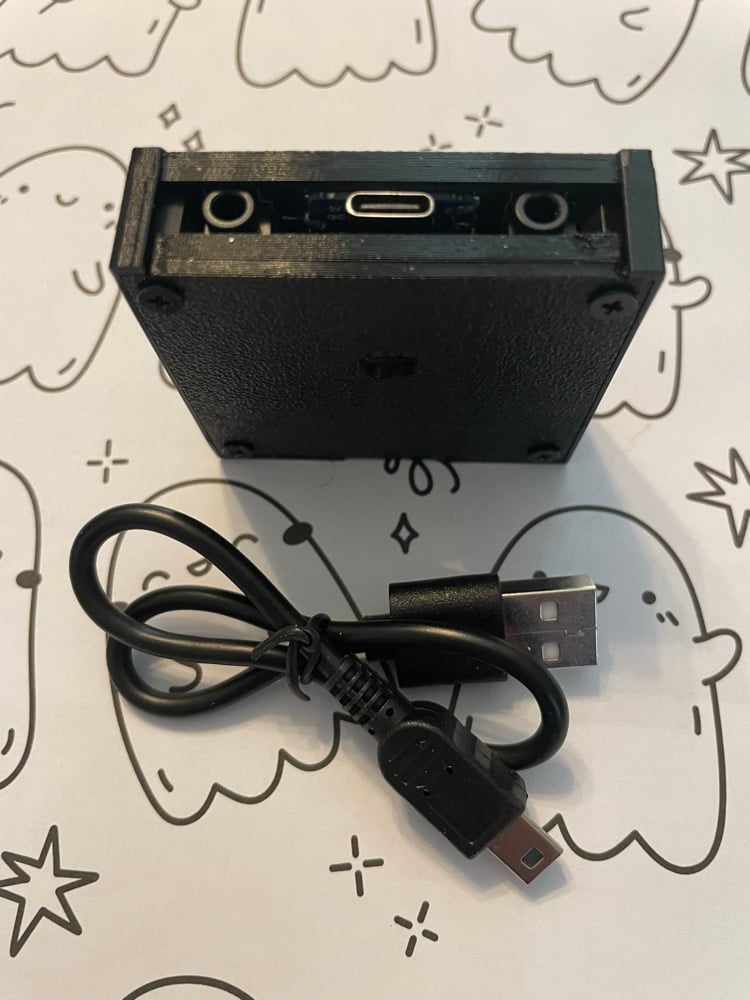

Included: the adapter and a PSP USB Cable and a USB-C Cable.
I've made this hardware adapter open source, if you want, you can build it yourself:
