SID-DS - 3 voice SID synthesizer and Groovebox - Downloadable ROM - V1.0.5B (+ Updates)
The Commodore 64's legendary sound chip, as a groovebox in your Nintendo DS.
A three-voice SID synthesizer and full groovebox for the Nintendo DS: 6581/8580 emulation, 3-track step sequencer, SID drum machine, parameter locks, song arranger, and 3-part multitimbral MIDI.
SID-DS turns your Nintendo DS into the most famous synthesizer chip ever made. A register-level emulation of the MOS 6581/8580 SID runs on the DS's second CPU, with combinable waveforms, ring modulation, hard sync, the one shared analog-style filter, and the 6581's beautifully wrong distortion.
Sequence three independent voice tracks and a four-lane SID drum kit. Change the filter while the pattern plays and the machine records the movement, volca style. Lock any parameter to any step, Elektron style. Chain up to 64 pattern slots into a song with repeats and per-slot mutes. Mix it on nine faders, glue it with chorus and delay, filter curve, three-track step strip, and oscilloscope.
The chip
- 3 SID voices, register-level 6581/8580 emulation (switchable models)
- Triangle, saw, pulse (PWM) and noise, combinable per voice like the real chip
- Ring modulation, hard sync, SID-accurate ADSR envelopes per voice
- The one shared SID filter: LP/HP/BP/notch, per-voice routing, 6581 drive
- LFO (cutoff / pulse width / pitch), glide, pitch & mod wheels
The groovebox
- 16 patterns, 32 steps, 3 colour-coded voice tracks per pattern
- Per step: velocity, gate, ratchet, probability, slide, tie
- 4 lane SID-recipe drum machine (kick / snare / hats) with accent, per-drum tune, decay and level, all tweakable while it plays
- Motion recording and parameter locks on every sound control, drums included
- 64-slot song arranger with repeats, per-slot mutes and loop on/off
- 9-fader mixer: SID master, three per-voice levels, drum master, lane trims
- Chorus and delay

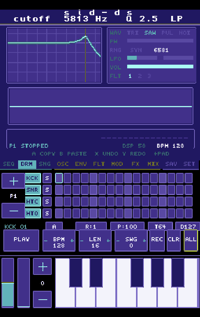

- Live top-screen dashboard: filter curve, voice panel, 3-track step strip, oscilloscope
Other stuff
- 3 part multitimbral MIDI in (one channel per voice) plus GM drums on ch10 with an mDS slot-2 cartridge.
- MIDI clock in/out, THRU, a full CC map for DAW automation
- 16 full-state preset slots plus autosave to SD
- Works on flashcarts and emulators (melonDS recommended)
What you get
`sid-ds-1.0.1b.nds`: full firmware with the built-in demo song
Requirements
A Nintendo DS / DS Lite / 3DS etc with an SD flashcart (for saving).
